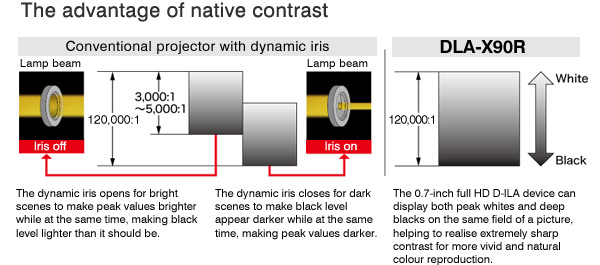

Exceptionally High Native Contrast Ratio of 120,000:1
As a top-of-the-line D-ILA projector, the DLA-X90R delivers ultimate performance in all aspects of image reproduction,including the industry's highest native contrast ratio of 120,000:1*. This extraordinary figure is realised by reducing unnecessary light leakage from the optical engine, which is comprised of an original D-ILA device, wire grid, and other innovatively assembled components/devices.
- *As of November 2011.
- *80,000:1 for the DLA-X70R/ 50,000:1 for the DLA-X30
JVC-developed D-ILA panel module
Many years in development and supported by technical expertise, the D-ILA panel module is a JVC original LCOS (liquid crystal on silicon) reflective LCD panel module for projectors that guarantees precise video reproduction. The D-ILA device provides smoother and natural-looking pictures thanks to more closely spaced pixel elements, which help to minimise visual artefacts such as the “screen-door effect”. And, when this device is combined with the new optical engine, cinema-like quality picture is assured.
JVC's exclusive D-ILA device
Film-like picture without pixel gaps or the "screen-door effect".
*Simulated picture to demonstrate picture enhancement.
JVC's Unique Real Colour Imaging Technology (DLA-X90R/DLA-X70R)
Real Colour Imaging Technology accurately detects film colour specifications to optimise colour replication and heighten picture quality to reproduce colours that are as faithful to the original source as possible.
Wide Colour Space
Real Colour Imaging Technology features a colour space wider than that of Adobe RGB to vividly reproduce a fuller spectrum of colours such as the green of trees, the blue of oceans, etc., which was difficult to recreate accurately up until now.
Simulated pictures to emphasise the difference in colour reproduction.
Xenon-lamp Colour Temperature Setting
Real Colour Imaging Technology also incorporates a Xenon-mode colour temperature setting equivalent to that of a Xenon lamp, a popular light source used in cinemas.
This setting allows for the authentic reproduction of colours similar to those of film in cinemas, while using highly efficient and economical ultra-high pressure mercury lamps.
Conventional colour temperature setting
Xenon-mode colour temperature setting
*Simulated picture to demonstrate picture enhancement.
DLA-X90R/X70R picture modes and colour profiles
JVC has succeeded in creating exclusive colour profiles by analysing and focusing on the colour information of original film prints. And when these profiles are combined with the array of available picture modes, viewers can enjoy twelve different types of image reproduction.
Picture modes and Colour profiles
| Picture modes | Colour profiles | |
|---|---|---|
| Film | Film 1 | This original JVC colour profile was created by analysing colour space produced when a Xenon lamp is used to project motion-picture film made by the Eastman Kodak Company. |
| Film 2 | This original JVC colour profile was created by analysing colour space produced when a Xenon lamp is used to project motion-picture film made by the Fujifilm Corporation. | |
| Cinema | Cinema 1 | A profile providing rich reproduction of cinema-specific colours. |
| Cinema 2 | A profile similar to that of DCI*1 colour specifications. | |
| Standard | A profile similar to that of HDTV*2 colour specifications. | |
| Animation | Anime 1 | A profile ideal for CG animation. |
| Anime 2 | A profile ideal for cel (traditional) animation. | |
| Standard | A profile similar to that of HDTV*2 colour specifications. | |
| Natural | Standard | A profile similar to that of HDTV*2 colour specifications. |
| Video | A profile ideal for drama/sports programmes. | |
| Vivid | A profile ideal for vivid colours found in video games, etc. | |
| Adobe | The colour profile for Adobe RGB. | |
| Stage | Stage | A profile ideal for listening to live music, orchestras, and operas or watching theatrical plays. |
| Standard | A profile similar to that of HDTV*2 colour specifications. | |
| 3D | 3D | A profile ideal when 3D glasses are used. |
| Standard | A profile similar to that of HDTV*2 colour specifications. | |
| Vivid | A profile ideal for vivid colours found in video games, etc. | |
- *1: Digital Cinema Initiative (DCI)
- *2: High Definition Television (HDTV)
DLA-X30 picture modes and colour spaces
Users can select from six picture modes that are designed to perfectly match the content and ensure impressive image quality. Up to three different colour spaces can also be used to achieve the ideal colour space to complement the picture modes.
Picture modes and colour spaces
| Picture modes | |
|---|---|
| Film | Picture mode ideal for reproducing film-like textures. |
| Cinema | Picture mode that enhances the vivid colours of DCI*1 specifications. Ideal for viewing of all types of movies. |
| Animation | Picture mode ideal for viewing animation movies. |
| Natural | Picture mode providing natural colours and gradations, making it ideal for viewing video sources such as dramas. |
| Stage | Picture mode ideal for viewing or listening to live music and stage performances. |
| 3D | Picture mode ideal for viewing 3D video content. |
| Colour spaces | |
|---|---|
| Standard | Colour space similar to that of HDTV*2 specifications. |
| Wide 1 | Colour space similar to that of DCI specifications. |
| Wide 2 | Colour space wider than Wide 1 |
- *1: Digital Cinema Initiative (DCI)
- *2: High Definition Television (HDTV)
Clear Motion Drive improves pictures with rapid movement
As an original manufacturer of high-speed drive technology, JVC has enhanced its detection interpolation technology through high-precision interpolation algorithms to develop Clear Motion Drive that helps to smooth movement in the picture. By reducing blur that can be generated in high-speed scenes such as sports events, etc., Clear Motion Drive makes the overall picture much smoother and clearer. Additionally, as the amount of picture delay is very limited, the DLA-X90R/X70R/X30 projectors are also well suited for playing video games.
Simulated pictures to emphasise the difference between Clear Motion Drive mode turned on and off.
High-performance 2x motorised zoom lens
The high-performance 2x zoom lens features a large-diameter, all-glass lens system with 17 elements in 15 groups including an ED (extra low dispersion) lens. This lens system not only enhances focusing performance but also significantly reduces chromatic aberration and colour bleeding to better project images with ample depth. What's more, it is also equipped with a 16-step aperture function that enables adjustment of brightness according to user preferences and/or operating environment to realise the deepest black possible.
Certified by ISF (Imaging Science Foundation) (DLA-X90R/DLA-X70R)
The DLA-X90R and X70R are licensed with the ISF C3 (Certified Calibration Controls) mode, enabling trained dealers to professionally calibrate them to desired screen surfaces, lighting environments and video sources, and then securely store these precise settings into the projector. This not only helps to ensure the reproduction of film or video content accurate to the source but also excellent picture quality optimised for specific environments.
