Projection Distance
| Display size (16:9) | Projection distance | |||
|---|---|---|---|---|
| Screen diagonal ( inch ) |
W (mm) | H (mm) | Wide (m) | Tele (m) |
| 60 | 1,328 | 747 | 1.78 | 3.66 |
| 70 | 1,549 | 872 | 2.09 | 4.28 |
| 80 | 1,771 | 996 | 2.40 | 4.89 |
| 90 | 1,992 | 1,121 | 2.70 | 5.51 |
| 100 | 2,214 | 1,245 | 3.01 | 6.13 |
| 110 | 2,435 | 1,370 | 3.31 | 6.75 |
| 120 | 2,656 | 1,494 | 3.62 | 7.36 |
| 130 | 2,878 | 1,619 | 3.92 | 7.98 |
| 140 | 3,099 | 1,743 | 4.23 | 8.60 |
| 150 | 3,320 | 1,868 | 4.53 | 9.22 |
| 160 | 3,542 | 1,992 | 4.84 | 9.84 |
| 170 | 3,763 | 2,117 | 5.14 | 10.45 |
| 180 | 3,984 | 2,241 | 5.45 | 11.07 |
| 190 | 4,206 | 2,366 | 5.75 | 11.68 |
| 200 | 4,427 | 2,490 | 6.06 | 12.30 |
- * Projection distances are design specifications, so there is ±5% variation.
| Display size (2.35：1) *when 2.35:1 signal input | Projection distance | |||
|---|---|---|---|---|
| Screen diagonal ( inch ) |
W (mm) | H (mm) | Wide(m) | Tele(m) |
| 60 | 1402 | 597 | 1.95 | 3.91 |
| 70 | 1636 | 696 | 2.28 | 4.56 |
| 80 | 1870 | 796 | 2.60 | 5.21 |
| 90 | 2103 | 895 | 2.93 | 5.86 |
| 100 | 2337 | 995 | 3.26 | 6.51 |
| 110 | 2571 | 1094 | 3.58 | 7.16 |
| 120 | 2805 | 1193 | 3.91 | 7.81 |
| 130 | 3038 | 1293 | 4.23 | 8.47 |
| 140 | 3272 | 1392 | 4.56 | 9.12 |
| 150 | 3506 | 1492 | 4.88 | 9.77 |
| 160 | 3740 | 1591 | 5.21 | 10.42 |
| 170 | 3973 | 1691 | 5.53 | 11.07 |
| 180 | 4207 | 1790 | 5.86 | 11.72 |
| 190 | 4441 | 1890 | 6.19 | 12.37 |
| 200 | 4674 | 1989 | 6.51 | 13.02 |
- * Projection distances are design specifications, so there is ±5% variation.
Lens Shift Function
Specifications
| DLAX90R | DLA-X70R | DLA-X30 | ||
| Device | 0.7 inch Full HD D-ILA (1920 x 1080) x3 | |||
| e-shift Technology | Yes | - | ||
| Resolution | 3840 x 2160*1 | 1920 x 1080 | ||
| Lens | 2 x motorised zoom / focus | |||
| f=21.4mm - 42.8mm | ||||
| F=3.2 - 4 | ||||
| Projection size | 60 - 200 inches (screen diagonal) | |||
| Lens shift | +/-80% Vertical and +/-34% Horizontal (motorised) | |||
| Light source Lamp | 220W Ultra-High Pressure Mercury Lamp (lamp life: approx. 3000 hours when the lamp is in Normal mode |
|||
| Brightness*2 | 1,200lm | 1,300lm | ||
| Contrast ratio | Native: 120,000:1 | Native: 80,000:1 | Native: 50,000:1 | |
| Connectors | Component | 1(RCA; Y , PB/CB , PR/CR) | ||
| HDMI | 2 (3D/Deep Colour/CEC compatible | |||
| Analogue RGB (PC) | 1 (D-sub 15-pin) | - | ||
| RS232C | 1 (D-sub 9-pin) | |||
| LAN (RJ-45) | 1 | |||
| Trigger | 1 (Mini jack , DC12V/100mA) | |||
| Remote | 1 (Mini jack) | |||
| 3D Sync | 1 (Mini Din 3pin) | |||
| Video Input Signal Format |
Digital | 480i/p, 576i/p, 720p 60/50, 1080i 60/50, 1080p 60/50/24 |
||
| Analogue | 480i/p, 576i/p, 720p 60/50, 1080i 60/50 | |||
| PC input signal | HDMI | VGA/SVGA/XGA/WXGA/WXGA+/SXGA/WSXGA+/WUXGA | ||
| Analogue RGB (D-sub 15-pin) |
VGA/SVGA/XGA/WXGA/WXGA+/SXGA/SXGA+ /WSXGA+/1920x1080/Mac 13”,16”19” |
– | ||
| 3D format | Frame packing | 720p 60/50,1080p 24,1080i 60/50 | ||
| Side-by-side (half) |
720p 60/50, 1080p 60/50, 1080i 60/50 | |||
| Top and bottom | 720p 60/50, 1080p/24 | |||
| Noise | 20dB (Lamp normal mode) | |||
| Power Requirement | AC 110-240V,50/60Hz | |||
| Power Consumption | 360W (Stand-by: 0.8W) | 330W (Stand-by: 0.8W) | ||
| Dimensions (W x H x D, mm) | 455 x 179 x 472 | |||
| Weight | 15.4 kg | 15.4 kg | 14.9 kg | |
- *1 Resolution is 1920x1080 at 3D mode.
- *2 Measurement, measuring conditions, and method of notation all comply with ISO 21118.

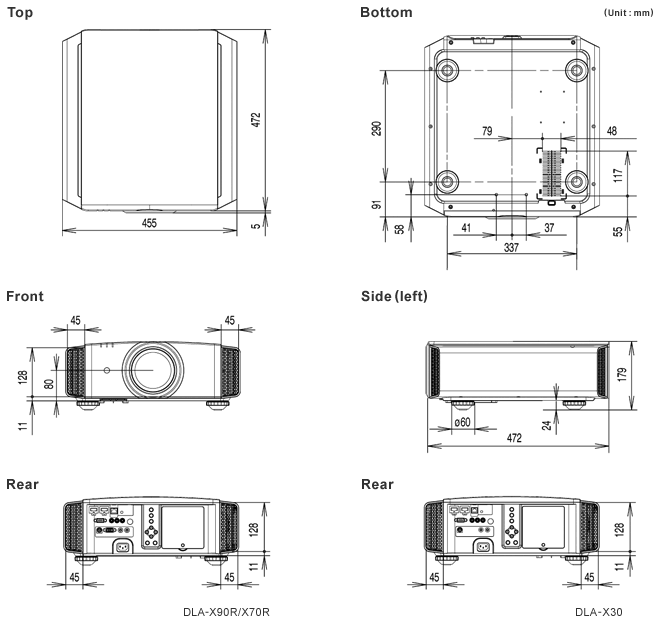

External Dimensions
Terminals on the rear ( DLA-X90R / DLA-X70R)
Terminals on the rear ( DLA-X30)
Optional Accessories
3D Glasses
PK-AG1
Battery-operated Type
3D Glasses
PK-AG2
Rechargeable Type
3D Synchro Emitter
PK-EM1
User-replaceable Lamp
PK-L2210U
- The projector is equipped with an ultra-high pressure mercury lamp, which may break, emitting a loud noise, when it is subjected to shock or after it has been used for some length of time.
- Please note that, depending on how the projector is used, there can be considerable difference between individual lamps regarding how many hours they will operate before requiring replacement.
- An additional payment is required for installation of a new lamp, if necessary.
- The projector lamp requires periodic replacement and is not covered by warranty.
- Please be aware that, because the D-ILA device is manufactured using highly advanced technologies, 0.01% or fewer of the pixels may be non-performing (always on or off).
