Lens Memory Function
This function records up to three separate lens adjustments for zoom, shift and focus that can be easily recalled when needed. Focus, zoom (size) and shift (display position) characteristics can be recorded for video content in different aspect ratios such as when using a CinemaScope screen size (2.35:1) or standard 16:9 screen and readily switched between each setup via the remote controller.

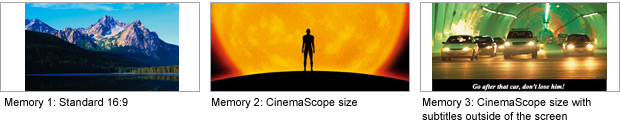

Lens memory examples (when using CinemaScope screen)
*Simulated picture to demonstrate picture enhancement.

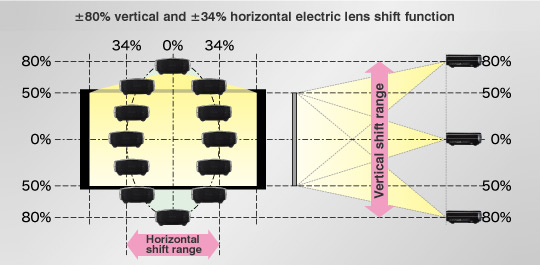

Flexible Installation Guaranteed
The flexible installation is made possible thanks to the ±80% vertical and ±34% horizontal powered lens-shift function. The projector also feature a high-performance 2X zoom lens with motorised focus that can project images upon a large 100-inch screen at distances of between 3.0 and 6.1 metres. With the high-performance motor, the once tedious tasks of setting zoom ratios and focus adjustments are now made simple and effortless.
Anamorphic mode for wide cinematic films
A 2.35:1 aspect ratio for wide cinematic films can be enjoyed by combining the projector with a third-party anamorphic lens to create dynamic picture reproduction just as can be seen in a movie theatre.
When using an anamorphic lens.
*Simulated picture to demonstrate picture enhancement.
Unique Automatic Lens Cover (DLA-X90R/DLA-X70R)
A unique automatic lens cover opens and closes upon power On/Off to protect against dust or damage to ensure users of easy, trouble-free operation via the remote controller, even if the projector is installed on the ceiling.
New, easy-to-use remote controller
The new remote controller offers outstanding operability with handy buttons that make a number functions effortless such as the direct selection of 3D format, Lens Memory, an input signal and/or picture mode. The buttons also light up automatically, enabling easy operation even in a dark room.
- remote controller for DLA-X90R/X70R.
A Wide Range of Inputs and Outputs
In addition to 3D compatible HDMI inputs, the projector features an array of other connections, such as an RJ-45 socket for projector control, firmware and configuration updates, and a trigger socket for an anamorphic lens or motorised screen.
Lamp power function
Depending on usage conditions, lamp power can be switched between the standard 160W and high 220W settings. In the standard lamp mode, lamp life is approximately 3,000 hours.
PK-L2210U
Picture Data In/Out (DLA-X90R)
Customised picture data can be transferred from the projector and stored onto a PC; picture data can also be uploaded from a PC to the projector via a LAN terminal.
- * Requires exclusive JVC software. Download from the JVC website
.
